| 项目
ITEM \ 机型 MACHINE MODEL |
单位
UNIT |
GEK850 |
| A |
B |
C |
| 注
射
部
分
I
N
J
E
C
T
I
O
N
U
N
I
T |
螺杆直径 |
SCREW DIAMETER |
MM |
95 |
105 |
115 |
| 螺杆长径比 |
SCREW LIDRATIO |
|
24.3 |
22 |
20.1 |
| 理论射胶容量（PS） |
THEORETICAL SHOT VOLUME(PS) |
CM3 |
3542 |
4321 |
5190 |
| 射胶速率 |
SHOT WEIGHT(PS) |
g |
3223 |
3937 |
4723 |
| 塑化能力 |
INJECTION
RATE(PS) |
g/s |
623 |
762 |
914 |
| 射胶压力 |
PLASTICIZING CAPACITY(PS) |
g/s |
78.8 |
96.3 |
115.5 |
| 螺杆压力 |
INJECTION PRESSURE |
MPa |
213 |
175 |
146 |
| 螺杆转速 |
SCREW SPEED |
rpm |
0-120 |
锁
模
部
分
M
O
U
L
D
I
N
G
U
N
I
T |
合模力 |
CLAMING FORCE |
KN |
8500 |

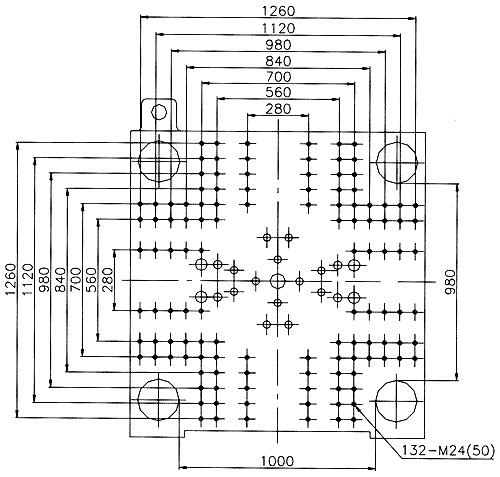

| 拉杆间距 |
SPACE BETWEEN TIE BARS |
MM*MM |
1000*980 |
| 最大模厚 |
MAX.MOULD THICKNESS |
MM |
1000 |
| 最小模厚 |
MIN.MOULD THICKNESS |
MM |
350 |

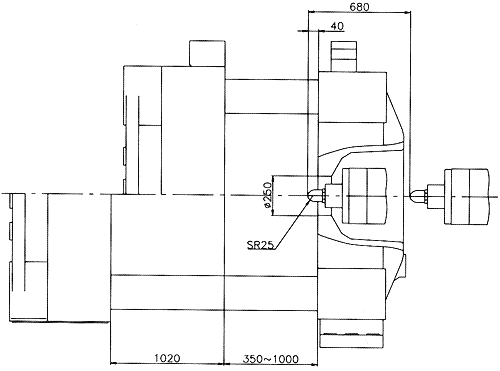

| 移模行程 |
MOULD PLATE STROKE |
MM |
1020 |
| 顶出行程 |
EJECTOR STROKE |
MM |
300 |
| 顶出力 |
EJECTOR FORCE |
KN |
200 |
| 顶出杆根数 |
NO.OF EJECTOR |
PC |
21 |
其
它
O
T
H
E
R
S |
最大油泵压力 |
MAX.PUMP PRESSURE |
MPa |
16 |
| 油泵马达功率 |
PUMP MOTOR POWER |
KW |
37+37 |
| 电热功率 |
HEATING POWER |
KW |
46.2 |
| 油箱容积 |
HYDRAULIC TANK CAPACITY |
L |
2000 |

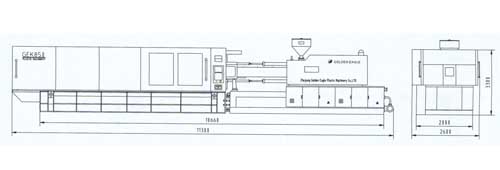

| 外形尺寸 |
MACHINE SIZE |
m |
11.3*2.8*3.8 |
| 机器重量 |
MACHINE WEIGHT |
t |
55 |
