| 项目
ITEM \ 机型 MACHINE MODEL |
单位
UNIT |
GEK100 |
| A |
B |
C |
| 注
射
部
分
I
N
J
E
C
T
I
O
N
U
N
I
T |
螺杆直径 |
SCREW DIAMETER |
MM |
30 |
35 |
38 |
| 螺杆长径比 |
SCREW LIDRATIO |
|
23.5 |
22 |
18.5 |
| 理论射胶容量（PS） |
THEORETICAL SHOT VOLUME(PS) |
CM3 |
140 |
168 |
198 |
| 射胶速率 |
SHOT WEIGHT(PS) |
g |
128 |
153 |
180 |
| 塑化能力 |
INJECTION
RATE(PS) |
g/s |
81.2 |
92 |
113 |
| 射胶压力 |
PLASTICIZING CAPACITY(PS) |
g/s |
10.6 |
11.9 |
14.7 |
| 螺杆压力 |
INJECTION PRESSURE |
MPa |
205 |
180 |
147 |
| 螺杆转速 |
SCREW SPEED |
rpm |
0-250 |
锁
模
部
分
M
O
U
L
D
I
N
G
U
N
I
T |
合模力 |
CLAMING FORCE |
KN |
1000 |

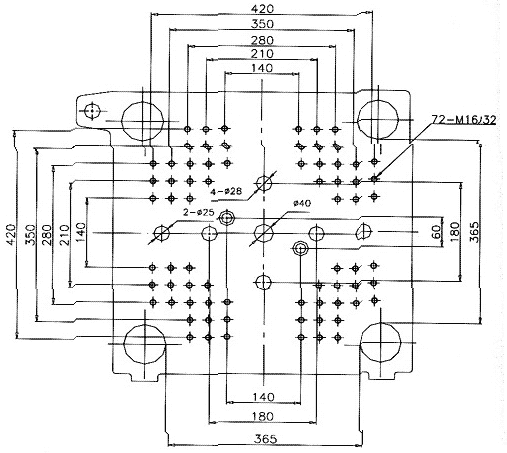

| 拉杆间距 |
SPACE BETWEEN TIE BARS |
MM*MM |
365*365 |
| 最大模厚 |
MAX.MOULD THICKNESS |
MM |
400 |
| 最小模厚 |
MIN.MOULD THICKNESS |
MM |
110 |

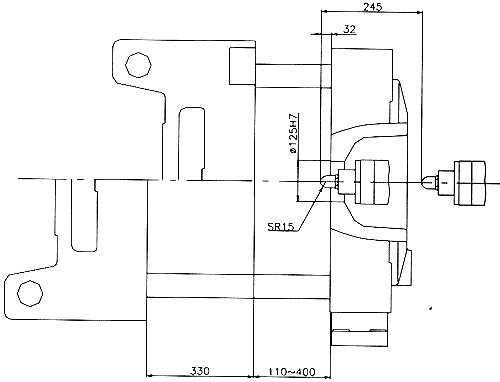

| 移模行程 |
MOULD PLATE STROKE |
MM |
330 |
| 顶出行程 |
EJECTOR STROKE |
MM |
110 |
| 顶出力 |
EJECTOR FORCE |
KN |
35 |
| 顶出杆根数 |
NO.OF EJECTOR |
PC |
5 |
其
它
O
T
H
E
R
S |
最大油泵压力 |
MAX.PUMP PRESSURE |
MPa |
16 |
| 油泵马达功率 |
PUMP MOTOR POWER |
KW |
9.5 |
| 电热功率 |
HEATING POWER |
KW |
6.25 |
| 油箱容积 |
HYDRAULIC TANK CAPACITY |
L |
200 |

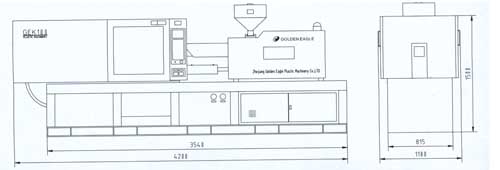

| 外形尺寸 |
MACHINE SIZE |
m |
4.0*1.2*1.7 |
| 机器重量 |
MACHINE WEIGHT |
t |
3.2 |
