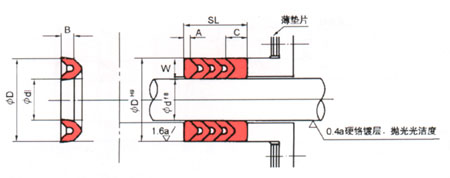

| 活塞杆用vnv系列v形密封圈（华尔卡标准规格）
○
丁腈橡胶的棉纤维 <华尔卡号2630 - vnv>
单位：mm
| 编
号 | d | d | w | b | 连
接 器 | 4个v形环一组包括连接器 | 5个v形环一组包括连接器 |
| 凹形c | 凸形a | 一组v形环
的额定总厚度 | sl | 一组v形环
的额定总厚度 | sl |
| v55 | 55 | 75 | 10 |
| 10 | 3 | 37 | 35.4 | 43 | 40.9 |
| v60 | 60 | 80 | 10 |
| 10 | 3 | 37 | 35.4 | 43 | 40.9 |
| v65 | 65 | 85 | 10 |
| 10 | 3 | 37 | 35.4 | 43 | 40.9 |
| v70 | 70 | 90 | 10 |
| 10 | 3 | 37 | 35.4 | 43 | 40.9 |
| v75 | 75 | 95 | 10 |
| 10 | 3 | 37 | 35.4 | 43 | 40.9 |
| v80 | 80 | 100 | 10 |
| 10 | 3 | 37 | 35.4 | 43 | 40.9 |
| v80a | 80 | 110 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v85 | 85 | 115 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v90 | 90 | 120 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v95 | 95 | 125 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v100 | 100 | 130 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v105 | 105 | 135 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v110 | 110 | 140 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v115 | 115 | 145 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v120 | 120 | 150 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v125 | 125 | 155 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v130 | 130 | 160 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v135 | 135 | 165 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v140 | 140 | 170 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v145 | 145 | 175 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| v150 | 150 | 180 | 15 |
| 10 | 3 | 41 | 38.1 | 48 | 44.3 |
| sl尺寸仅供参考
